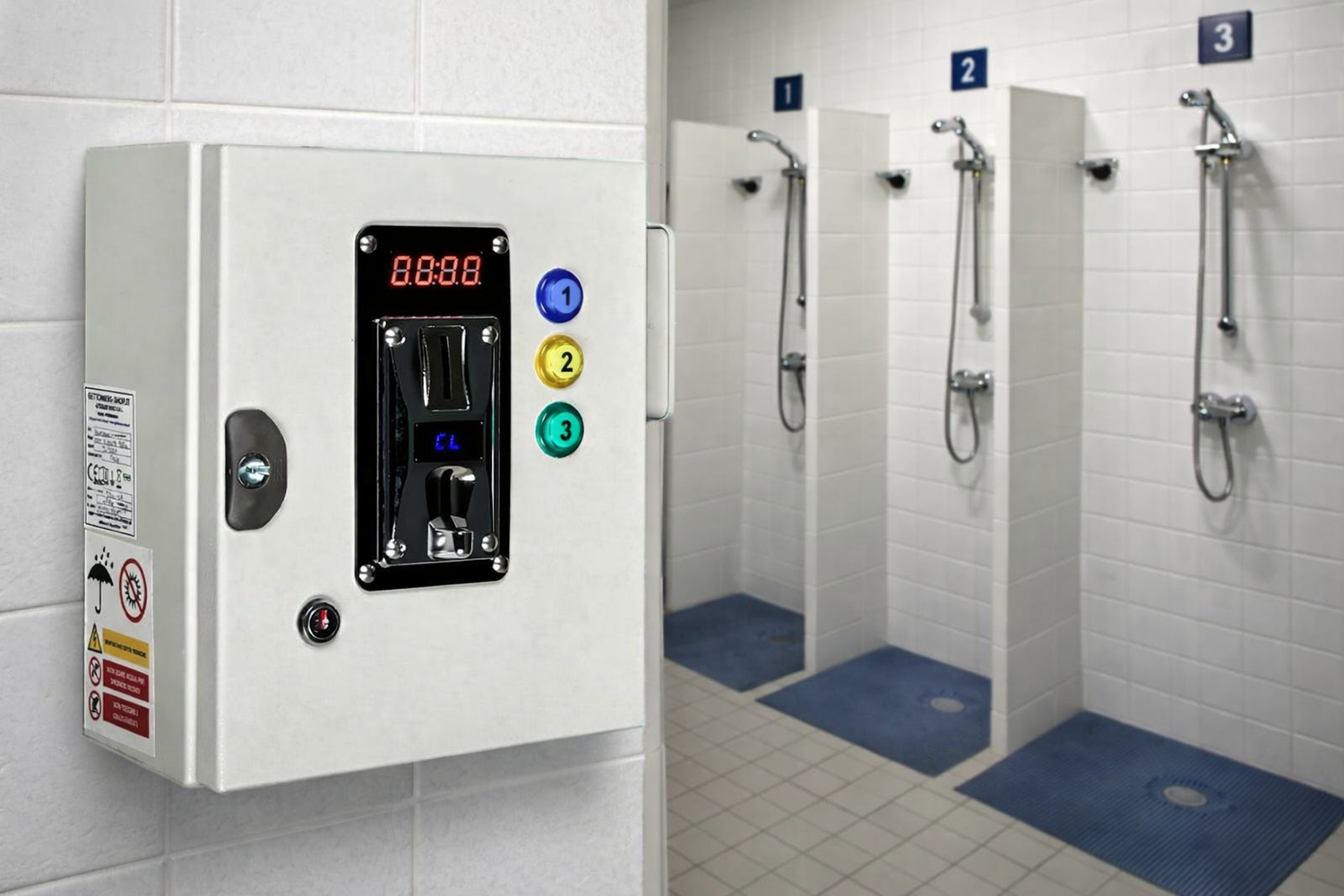

Coin controller for the management of 3 showers
A practical and reliable system for shower management
The coin controller for 3 showers is the ideal solution for swimming pools, gyms, beach resorts, campsites and sports facilities. This system helps optimize water consumption, while offering users a modern, clear and transparent service.
Each shower can be managed independently, with customizable price and time settings, allowing the service to be adapted to the specific needs of the facility.
Why choose this coin controller
- Consumption control. Ensures responsible use of water resources.
- Easy to use. Users activate the shower by inserting the required credit.
- Full customization. Time and price can be set independently for each shower.
- Reliable and safe. Solid construction with CE certification.
- Intuitive operation. Clear display and LED-lit selection buttons.
Product description
- Structure:
- Pressed steel cabinet, grey color.
- Dimensions: 30 × 30 × 16.6 cm.
- Approximate weight: 5 kg.
- Front door with security lock.
- Multi-coin acceptor:
- Accepts euro coins from € 0.10 to € 2.00.
- Optional configuration for tokens available on request.
- Independent timed outputs:
- 3 independent 12 Vdc timed outputs.
- Time and price programmable separately for each shower.
- Default setting: € 0.50 for 3 minutes, fully adjustable.
- Buttons and indicators:
- 3 selection buttons with LED indicators.
- Display showing inserted credit and remaining time.
- Included components:
- External power supply 230 V / 12 Vdc – 5 A.
- 3 brass solenoid valves with 12 Vdc coils and 1/2" connections.
- ABS junction box mounted on the side of the cabinet.
- Certification:
- Assembled in Italy.
- CE compliant.
- User manual supplied in English.
Operating mode
After inserting the required credit, the user selects the desired shower by pressing the corresponding button. The system automatically activates the selected shower for the preset duration.
To extend the operating time, the user must insert an amount equal to an exact multiple of the set price and press the same button again.
Important note: amounts that are not exact multiples of the set price (for example € 1.20 when the price is € 1.00) are not converted into additional time. Any extra cents will not be counted.
For this reason, it is recommended to install an information sign inviting users to insert the correct amount, in order to avoid misunderstandings and complaints.
Warnings
- The unit can be installed outdoors only if properly protected from rain and direct sunlight.
- Installation must be carried out by qualified personnel only.
- The warranty does not cover damage caused by incorrect or non-compliant installation.
For technical information or custom configurations, please contact us at info@gettoniere-shop.it.
TULLIO SERCI S.R.L. declines all responsibility for damage or malfunctions resulting from incorrect installation or use not compliant with the appliance manual.
