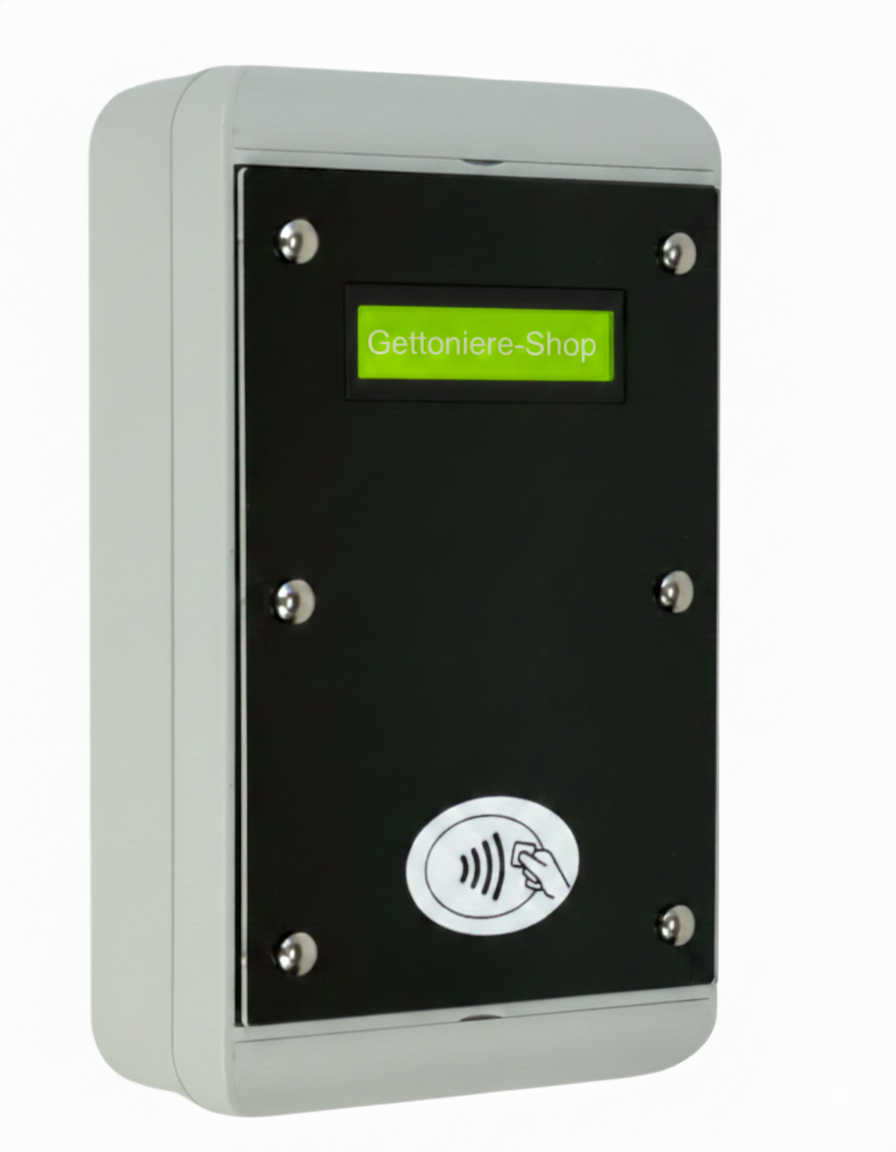

Low Power RFID Reader for Cards and Wristbands with Pulse Solenoid Valve 4.5 Vcc

🟢 Low Power RFID Reader for Pulse Solenoid Valve Control (4.5 Vcc)

Smart solution for autonomous and low energy systems

Introduction. Efficiency and autonomy in a single device

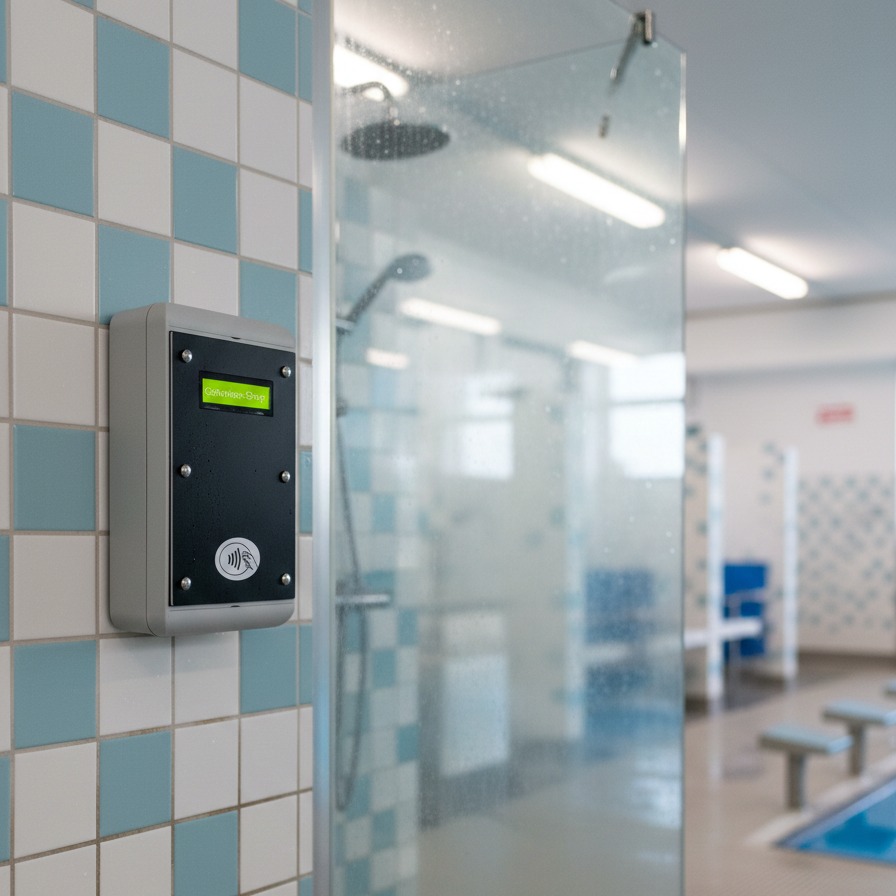

This RFID reader is designed for installations where energy availability is limited.It is ideal for systems powered by batteries, power banks, or solar panels, such as outdoor showers, campsites, beach facilities, mountain shelters, and remote locations.

The system manages the delivery of services such as water or air usingRFID cards, wristbands, or key fobs.The integrated LCD display sequentially shows the available credit and the remaining time.

Main features

• Smart activation. The service is activated only if sufficient credit is available on the RFID card.
• Multifunction display. A single LCD display shows the remaining credit and then the countdown time.
• Ultra low power consumption. All electronics are designed to operate in low power mode.
• RFID compatibility. Works with standard 13.56 MHz RFID cards, wristbands, and key fobs.
• 4.5 Vcc pulse output. Designed to control bistable pulse solenoid valves with minimal energy consumption.
• Local programming. Service time and credit value can be configured using onboard buttons, without a PC.

Operation

1. The user places the RFID card near the reader.
2. The LCD display shows the remaining credit.
3. One credit is deducted and a pulse is sent to the solenoid valve.
4. The display shows the remaining service time in countdown mode.
5. Additional credits can be added to extend the service duration.

Technical specifications

• RFID technology: 13.56 MHz, ISO 14443-A, MIFARE Classic 1K.
• Display: Backlit LCD for credit and remaining time.
• Output control: Electrical pulse at 4.5 Vcc, adjustable duration.
• Power supply: 12 Vcc input, compatible with battery or solar systems.
• Service time: Programmable from 1 second to 60 minutes.
• Programming: Via onboard buttons, no PC required.
• Enclosure: ABS box with IP56 protection rating.
• Dimensions: 215 × 127 × 60 mm.
• Weight: Approximately 400 g.
• Operating temperature: From -10 °C to +60 °C.
• Included solenoid valve: Bistable pulse solenoid valve, 4.5 Vcc, with 1/2" connections.
• Certification: CE.

Package contents

• Low power RFID reader, ready to use.
• 4.5 Vcc bistable pulse solenoid valve.
• User manual supplied in English, with installation and configuration instructions.

Warnings

• Installation must be carried out by qualified personnel.
• The warranty does not cover damage caused by incorrect or non compliant installation.
• The power supply or solar panel is not included.

Benefits for your facility

• Significant reduction in energy consumption.
• Reliable operation in remote or off grid locations.
• Easy management of service duration and costs.
• No software installation required.

For technical information, wiring diagrams, or custom configurations,contact info@gettoniere-shop.it or visitwww.gettoniere-shop.it.

TULLIO SERCI S.R.L. declines all responsibility for damage or malfunctions caused by incorrect installation or use not compliant with the appliance manual.
