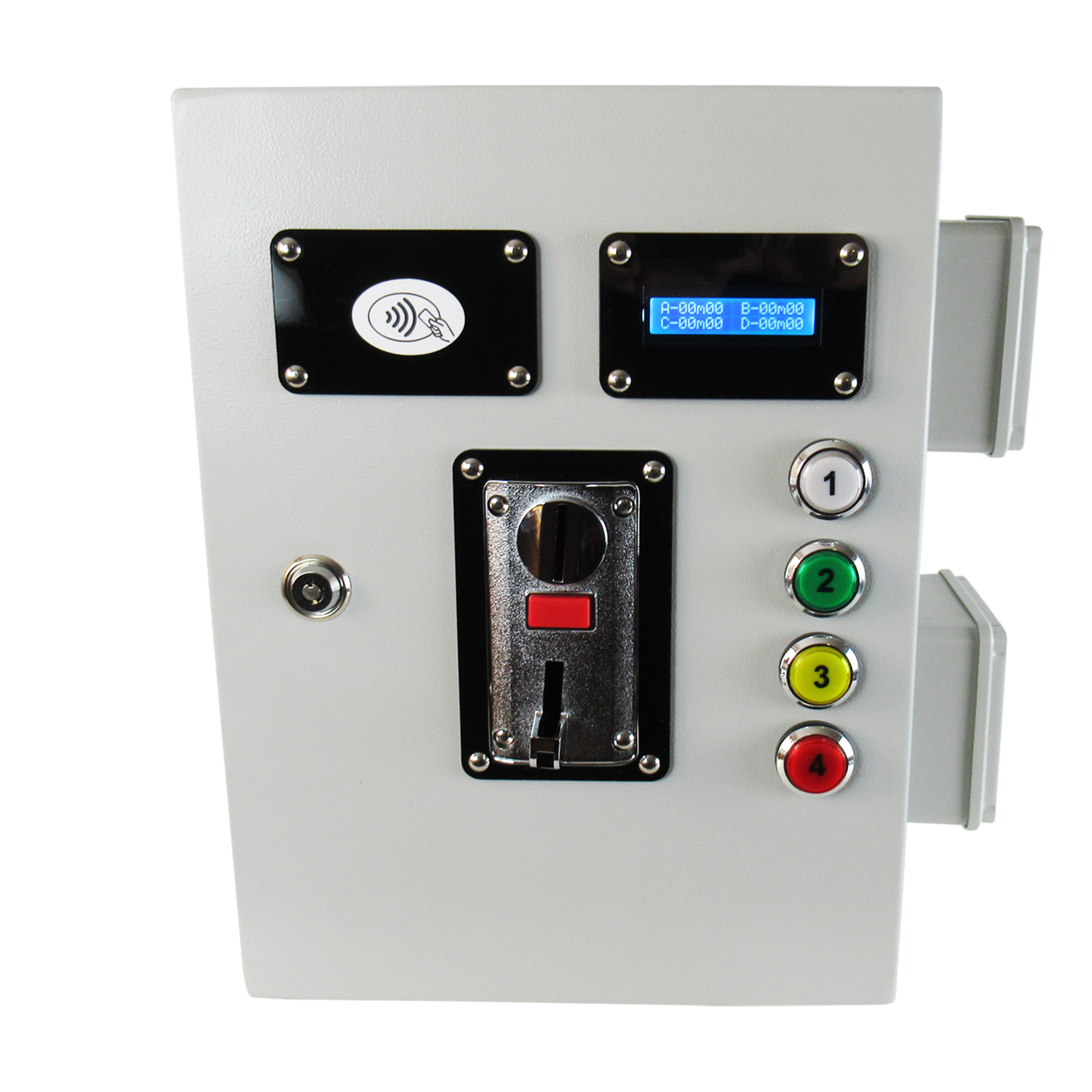

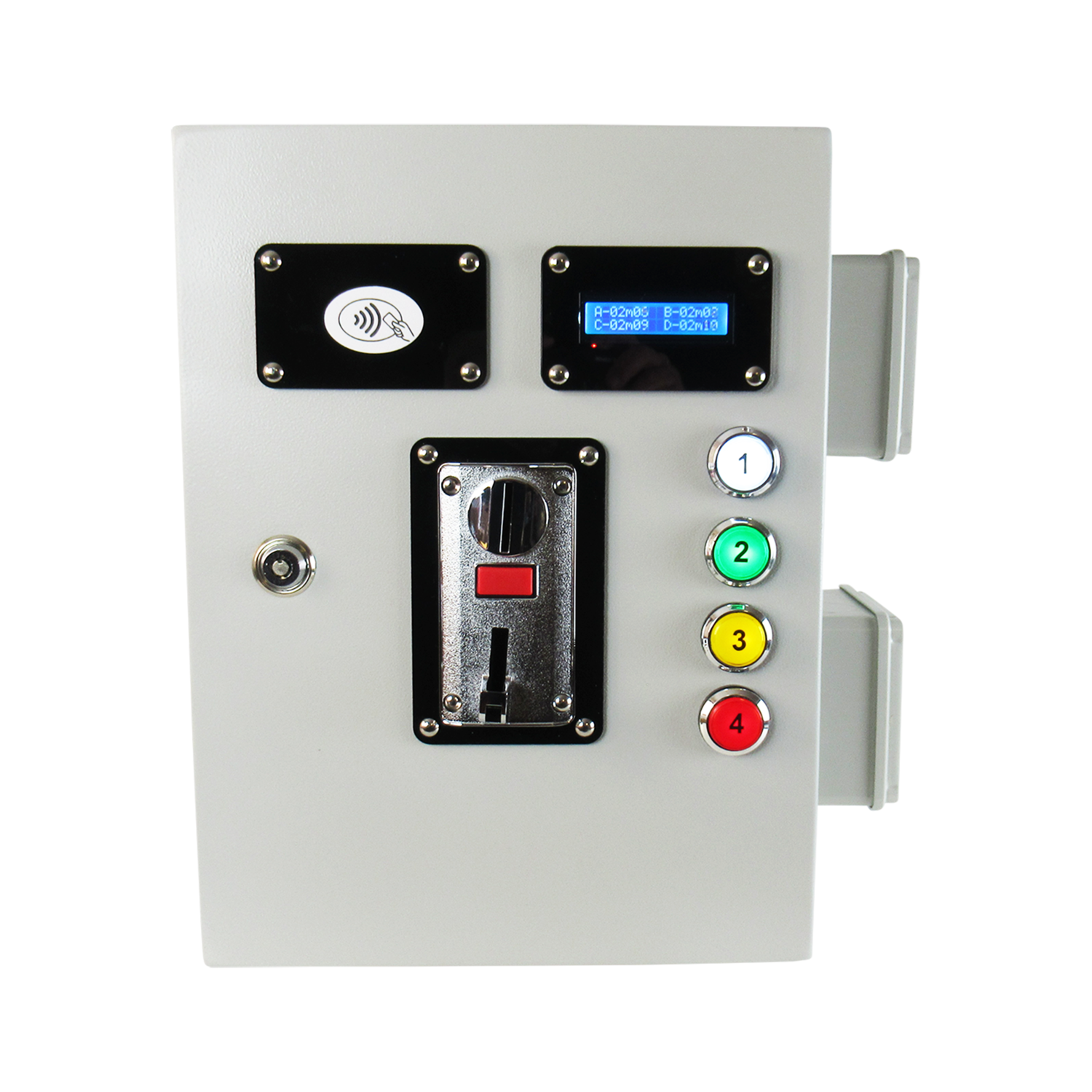

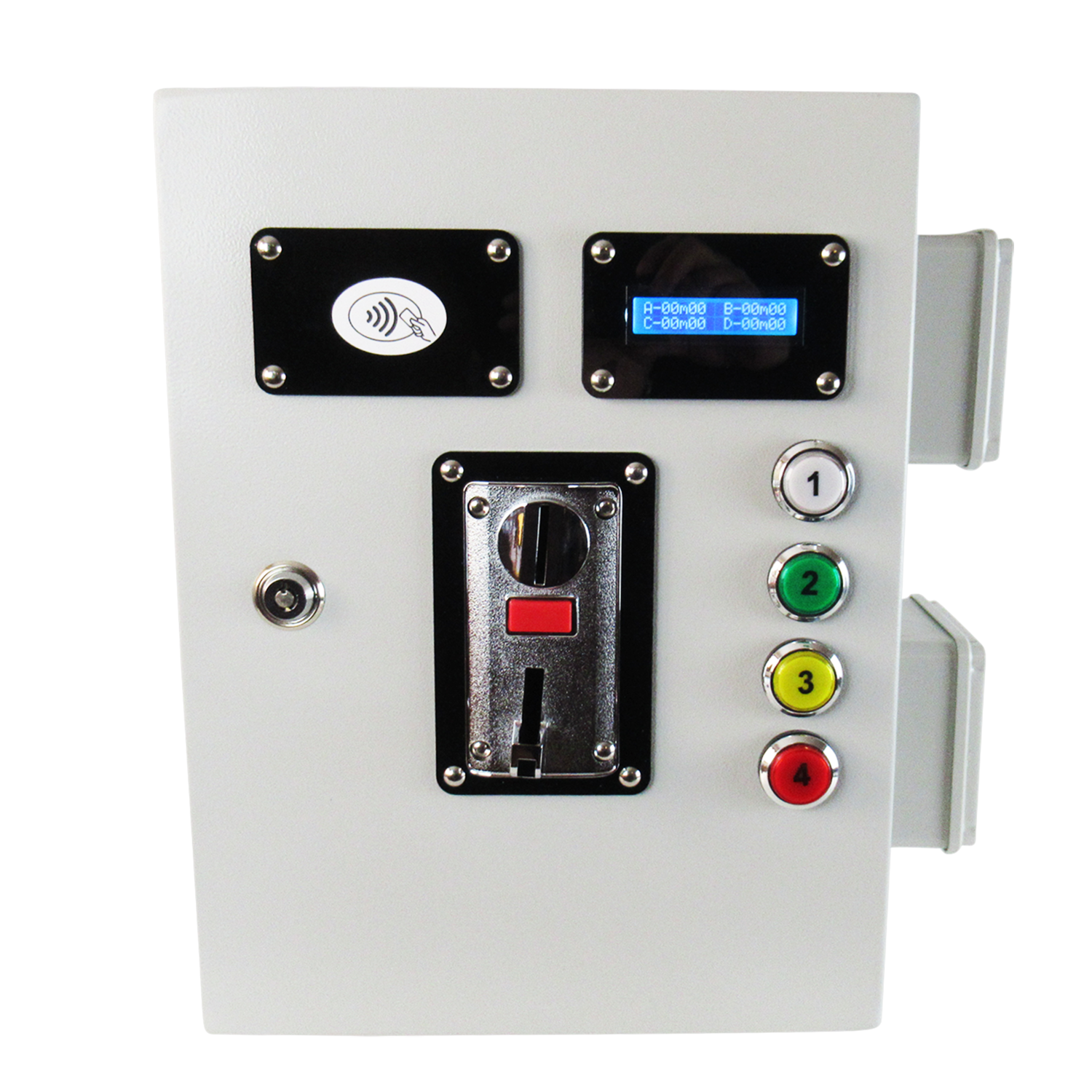

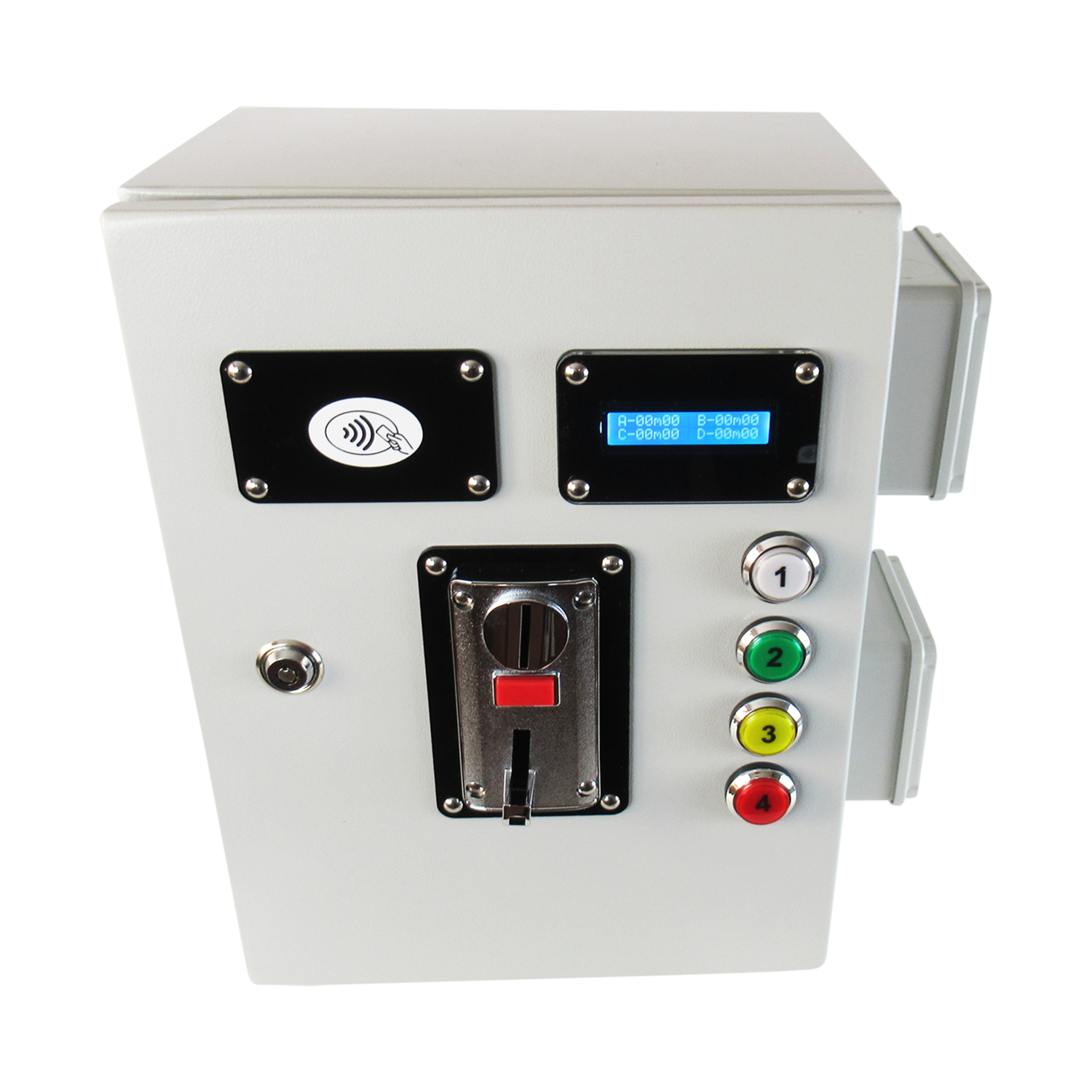

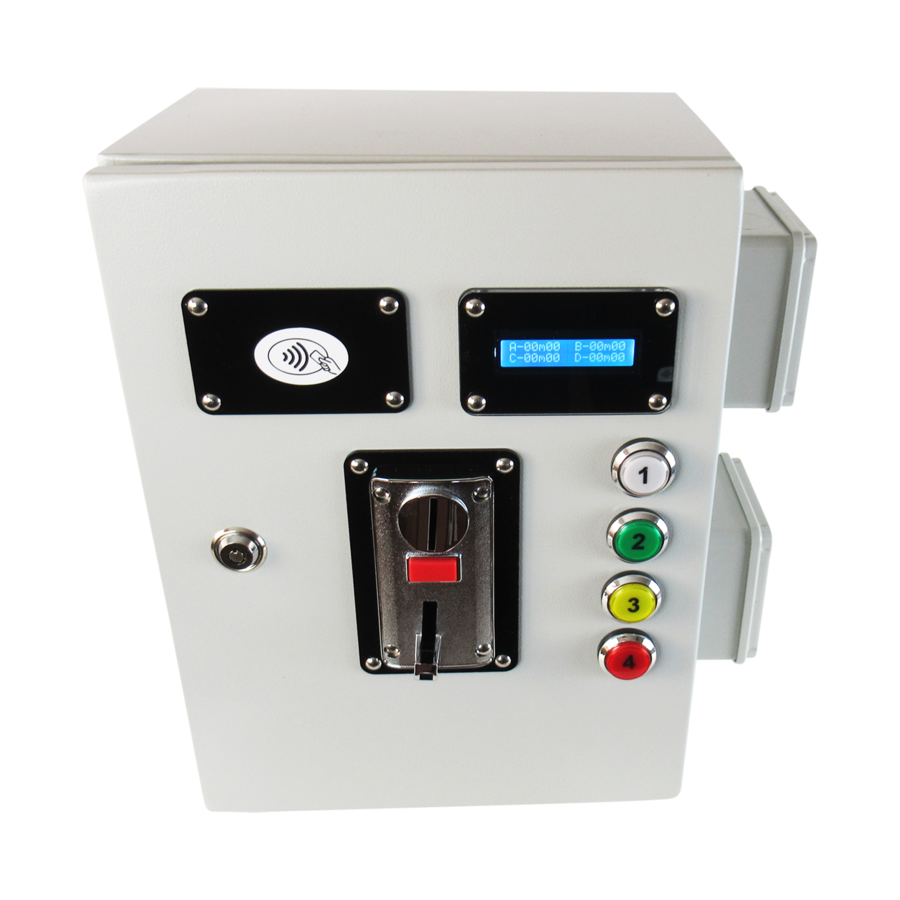

Coin Acceptor + RFID Reader for Controlling 4 Machines with N.A. Contact

Professional system designed to operate up to four washing machines or dryers using coins or rechargeable RFID cards. Ideal for self-service laundries, residences, campsites, shared laundry rooms and any facility requiring orderly use and accurate consumption control.

Intelligent Consumption Management

The device allows each machine to be activated independently and safely, using a clean N.A. contact compatible with most professional machines. This ensures reliability, safety, and clear usage control.

Operation with Coins

• The user inserts the desired amount (e.g. €3).
• Presses the button corresponding to the selected machine.
• The clean contact closes and the machine starts for the programmed time.

Operation with Rechargeable RFID Cards

• The user presents the RFID card to the reader.
• The LCD display shows the available credit.
• By pressing the button of the chosen machine, the programmed credit is deducted and the machine activates for the preset duration.

RFID Card Recharge

1) Recharge directly from the coin acceptor

• The user inserts, for example, €10.
• Presents the card to the reader.
• The credit is automatically transferred to the card.

2) Recharge via external devices (optional)

• Desktop programmer (code: RFIDPROG)
• Banknote acceptor (optional, for advanced setups)

Technical Specifications

• Main enclosure in folded steel sheet with double-key lock.
• Removable coin container inside the main box.
• Side ABS box with terminal block for wiring connections.
• Electronic multi-coin acceptor: accepts €0.10 – €0.20 – €0.50 – €1 – €2 (token version available on request).
• RFID Reader 13.56 MHz (ISO 14443A – Mifare 1K), compatible with cards, keyfobs and wristbands.
• 4 independent timed N.A. outputs (minimum time: 1 second).
• LCD display for inserted credit and remaining time.
• 4 command buttons, one for each connected machine.
• Modular CPU/TIMER board for easy maintenance and quick parameter adjustment.
• Programmable price and time (example: 4 € / 1 sec, 2 € / 45 min – fully adjustable).
• Delivered ready to use, pre-programmed and fully tested.
• Dimensions: 360 × 400 × 200 mm – Weight: approx. 8 kg.
• CE Certified – Product Made in Italy.

Electrical Installation

Each output features an independent terminal block connected to a clean-contact relay.

• The contacts are intended solely for machine activation.
• Do not apply 230 Vac to these contacts.

🔒 Safety and Installation

Important warnings:

Warranty is void if the device is installed incorrectly or not in accordance with the instructions.

Each machine (washer/dryer) must be powered through a line protected by a magnetothermal breaker + RCD correctly sized for its load.

The coin acceptor must also be connected to a line protected by a magnetothermal RCD, preferably dedicated. The power cable must pass through a bipolar switch to allow safe disconnection during maintenance.

A proper ground connection is mandatory on all circuits.

Important note: the device outputs a clean N.A. contact to the Start input of industrial machines. It must not be used as a main switch or safety device.

Final Warnings

• Warranty becomes void in case of non-compliant installation.
• This device does not replace the safety protections of the electrical system.
• Disconnect the main power switch before maintenance.
• Installation must be performed by qualified personnel.
